Table 7.3.1.2 Occupant Load Factor |
|||
Use | (ft²/person)a | (m²/person)a | |
Assembly | |||
Concentrated use, without fixed seating | 7 net | 0.65 net | rows of chairs or standing |
Less concentrated use, without fixed seating | 15 net | 1.4 net | tables and chairs |
Bench-type seating | 1 person/18 linear in. | 1 person/455 linear mm. | |
Fixed seating | Use number of fixed seats | Use number of fixed seats | |
Waiting spaces | see 12.1.7.2 and 13.1.7.2 | see 12.1.7.2 and 13.1.7.2 | 0.28m²/person |
Kitchens | 100 | 9.3 | |
Library stack areas | 100 | 9.3 | |
Library reading rooms | 50 net | 4.6 net | |
Swimming pools | 50 (water surface) | 4.6 (water surface) | |
Swimming pool decks | 30 | 2.8 | |
Exercise rooms withequipment | 50 | 4.6 | |
Exercise rooms without equipment | 15 | 1.4 | |
Stages | 15 net | 1.4 net | |
Lighting and access catwalks, galleries, gridirons | 100 net | 9.3 net | |
Casinos and similar gaming areas | 11 | 1 | |
Skating rinks | 50 | 4.6 | |
Educational Use | |||
Classrooms | 20 net | 1.9 net | |
Shops, laboratories, vocational rooms | 50 net | 4.6 net | |
Day-Care Use | 35 net | 3.3 net | |
Health Care Use | |||
Inpatient treatment departments | 240 | 22.3 | |
Sleeping Departments | 120 | 11.1 | |
Ambulatory health care | 100 | 9.3 | |
Detention and Correctional Use | 120 | 11.1 | |
Residential Use | |||
Hotels and dormitories | 200 | 18.6 | |
Apartment buildings | 200 | 18.6 | |
Board and care, large | 200 | 18.6 | |
Industrial Use | |||
General and high hazard industrial | 100 | 9.3 | |
Special-purpose industrial | NA | NA | |
Business Use (other than below) | 100 | 9.3 | |
Air traffic control tower observation levels | 40 | 3.7 | |
Storage Use | |||
In storage occupancies | NA | NA | |
In mercantile occupancies | 300 | 27.9 | |
In other than storage and mercantile occupancies | 500 | 46.5 | |
Mercantile Use | |||
Sales area on street floorb,c | 30 | 2.8 | |
Sales area on two or more street floorsc | 40 | 3.7 | |
Sales area on floor below street floorc | 30 | 2.8 | |
Sales area on floor above street floorc | 60 | 5.6 | |
Floors or portions of floors used only for offices | See business use. | See business use. | |
Floors or portions of floors used only for storage, receiving, and shipping, and not open to general public | 300 | 27.9 | |
Mall buildingsd | per factors applicable to use of spacec |
NA: Not applicable. The occupant load is the maximum probable number of occupants present at anytime.
aAll factors are expressed in gross area unless marked “net.”
bFor the purpose of determining occupant load in mercantile occupancies where, due to differences in the finished ground level of streets on different sides, two or more floors directly accessible from streets (not including alleys or similar backstreets) exist, each such floor is permitted to be considered a street floor. The occupant load factor is one person for each 40 ft² (3.7m²) of gross floor area of sales space.
cFor the purpose of determining occupant load in mercantile occupancies with no street floor, as defined in 3.3.253, but with access directly from the street by stairs or escalators, the floor at the point of entrance to the mercantile occupancy is considered the street floor.
dFor any food court or other assembly use areas located in the mall that are not included as a portion of the gross leasable area of the mall building, the occupant load is calculated based on the occupant load factor for that use as specified in Table7.3.1.2. The remaining mall area is not required to be assigned an occupant load.

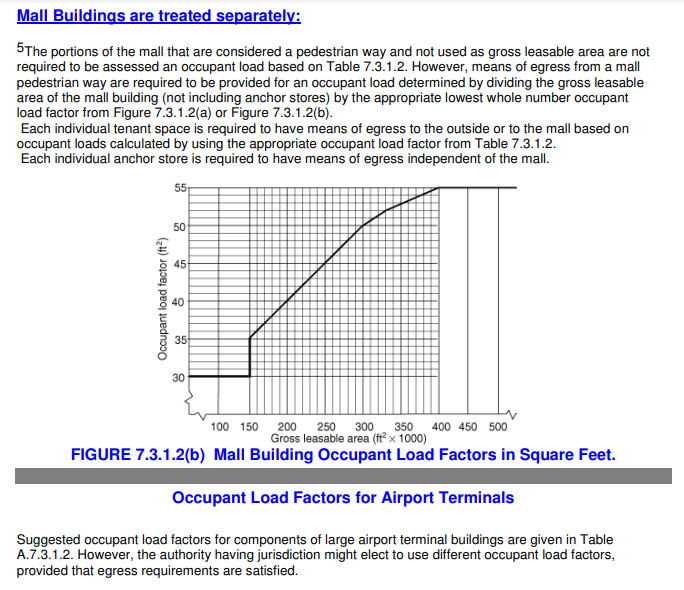

eThe portions of the mall that are considered a pedestrian way and not used as gross leasable area are not required to be assessed an occupant load based on Table 7.3.1.2. However, means of egress from a mall pedestrian way are required to be provided for an occupant load determined by dividing the gross leasable area of the mall building (not including anchor stores) by the appropriate lowest whole number occupant load factor from Figure 7.3.1.2(a) or Figure 7.3.1.2(b).
Each individual tenant space is required to have means of egress to the outside or to the mall based on occupant loads calculated by using the appropriate occupant load factor from Table 7.3.1.2. Each individual anchor store is required to have means of egress independent of the mall.
Table A.7.3.1.2 Airport Terminal Occupant Load Factors | |
---|---|
Airport Terminal Area | sqm (gross) |
Concourse | 9.3 |
Waiting areas | 1.4 |
Baggage claim | 1.9 |
Baggage handling | 28 |
